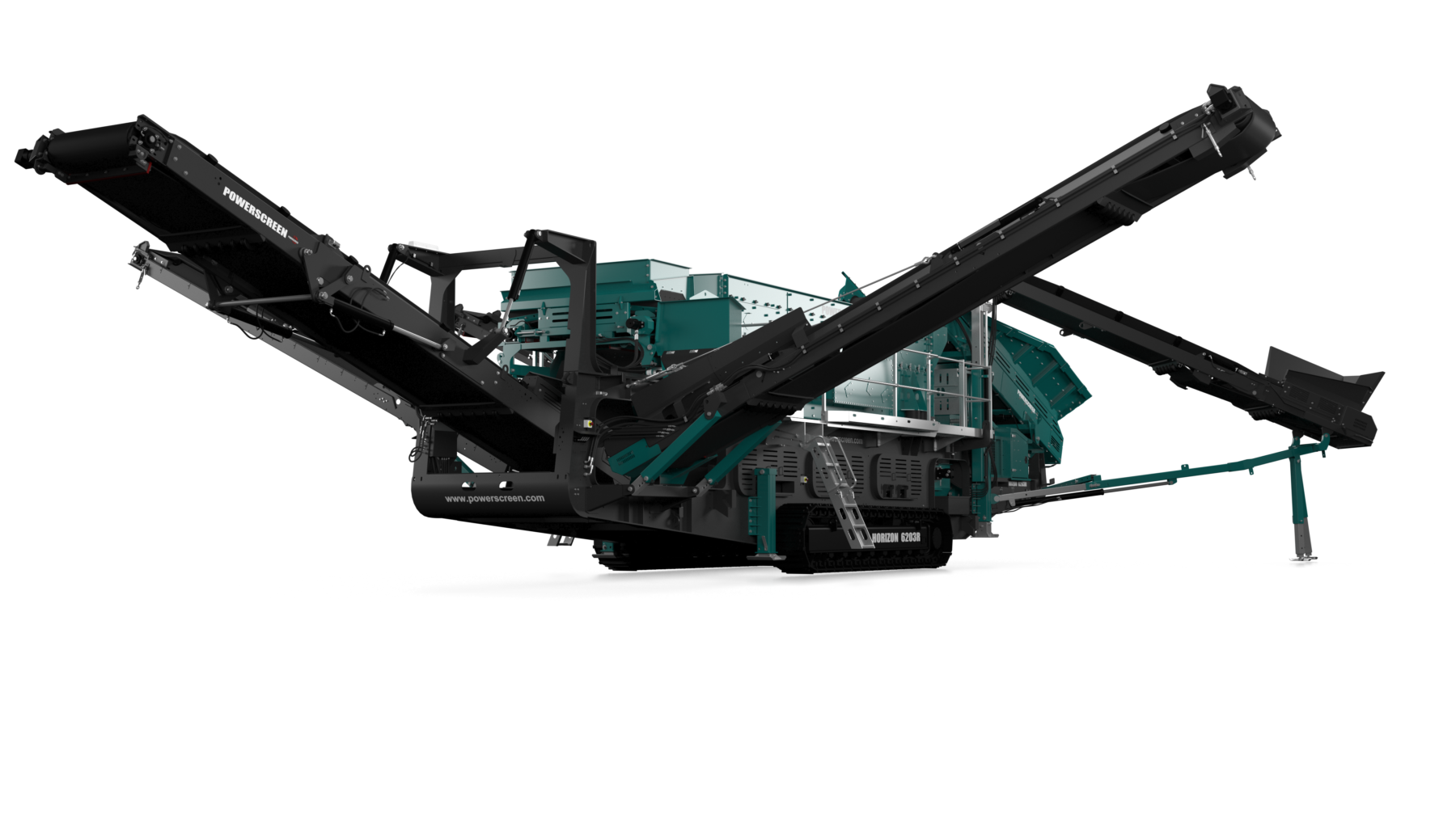

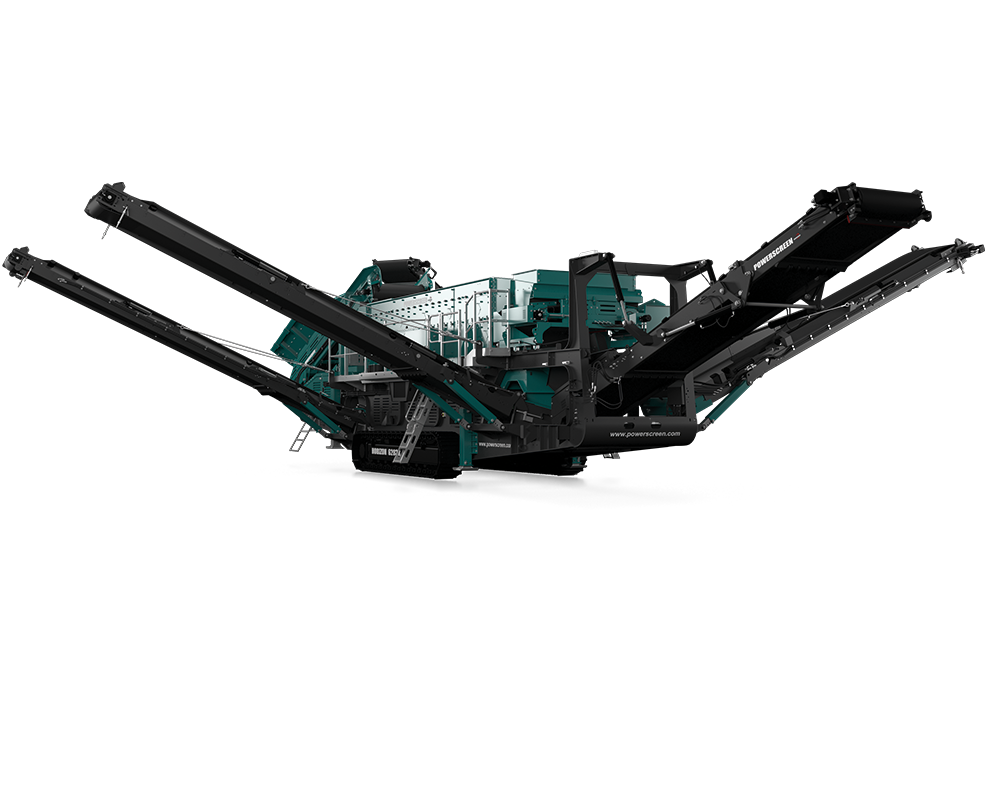

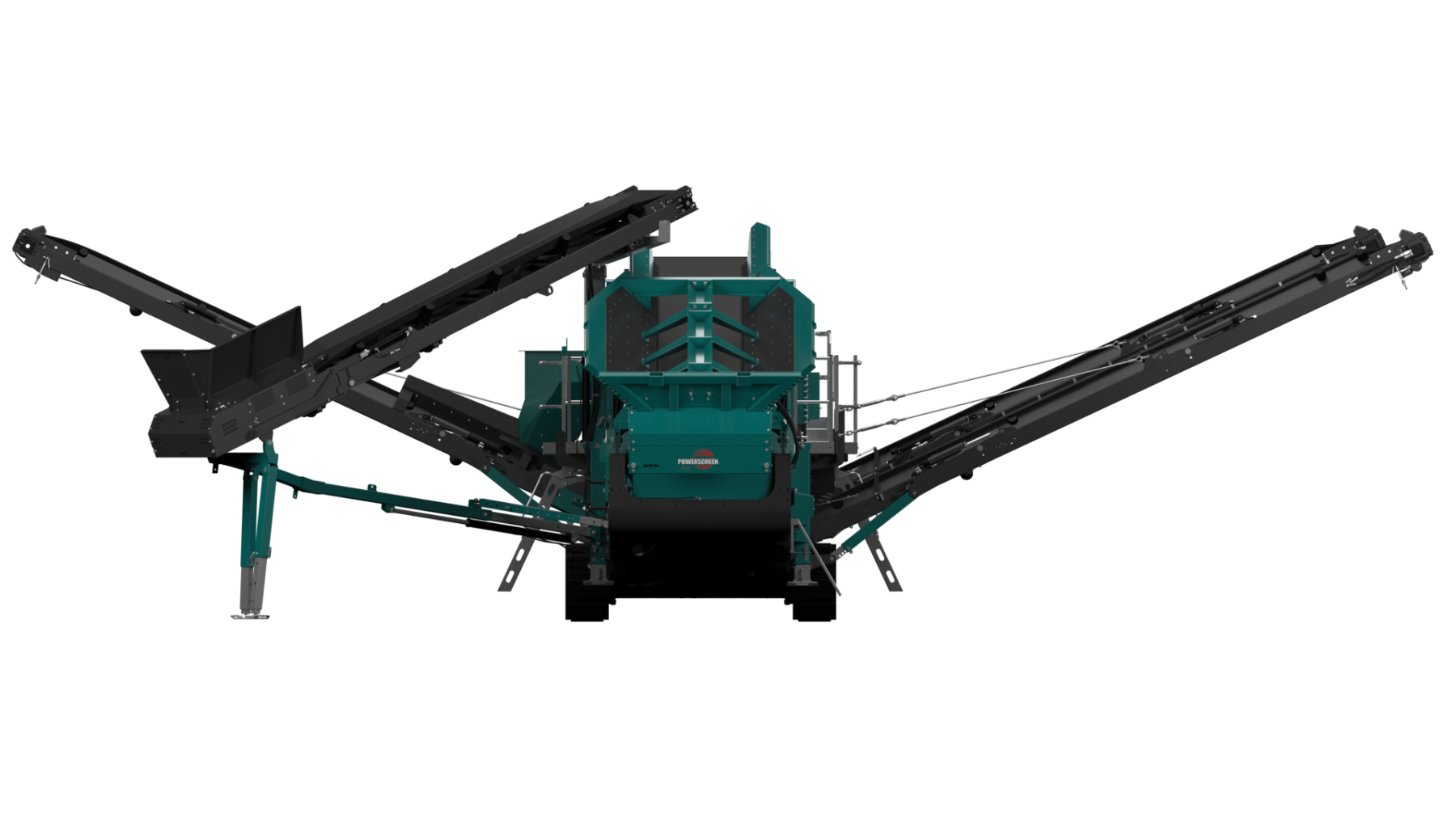

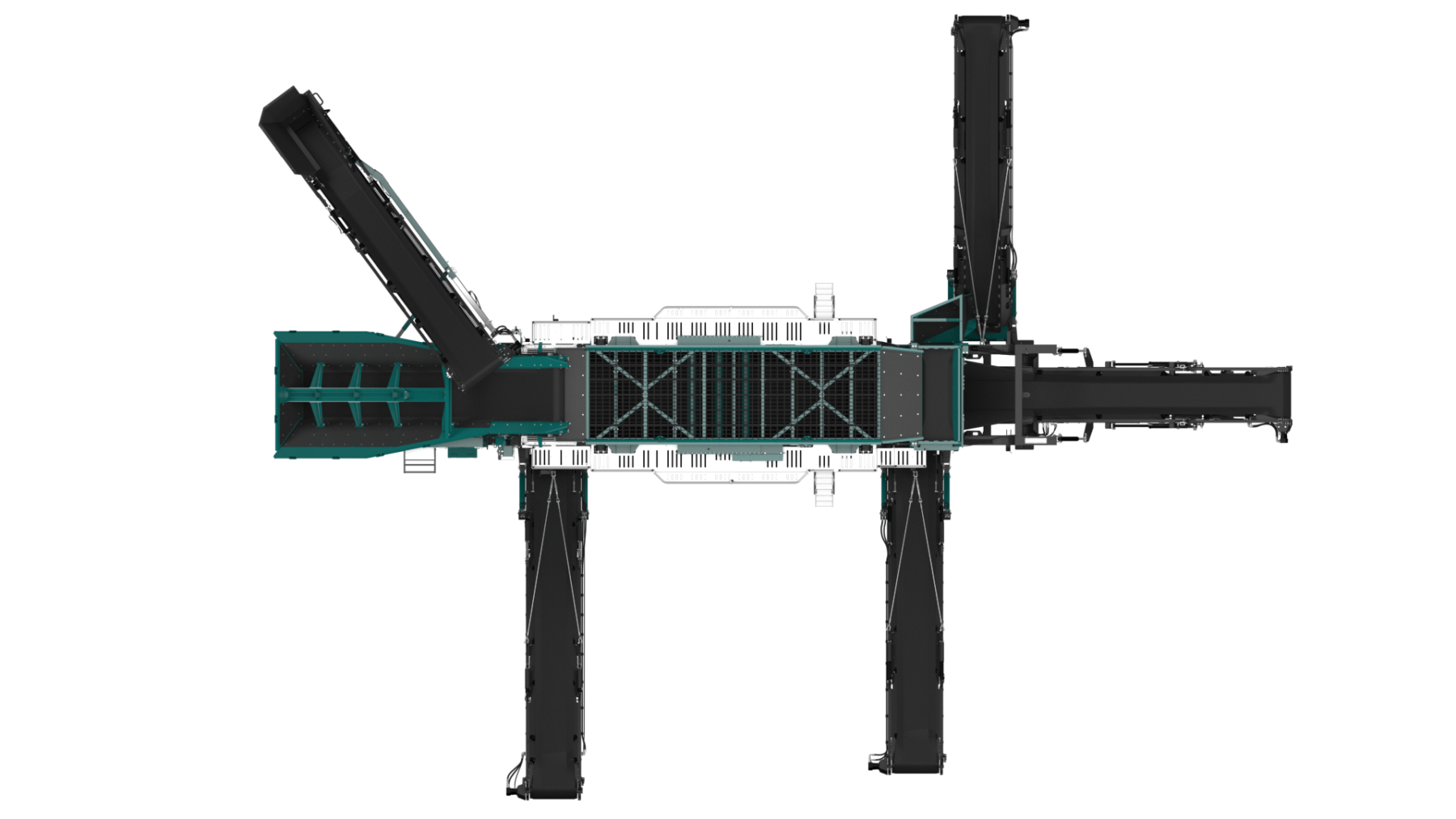

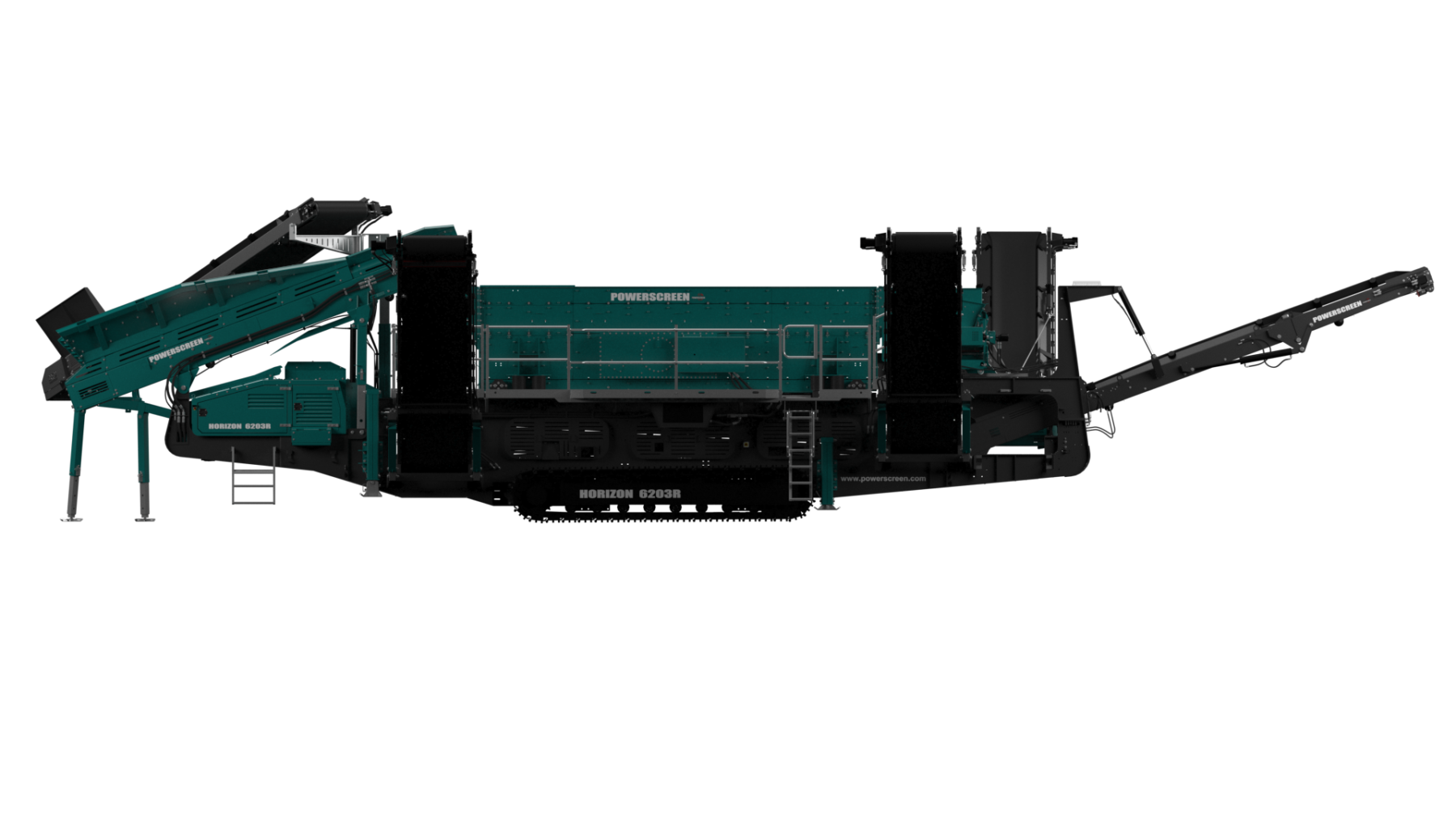

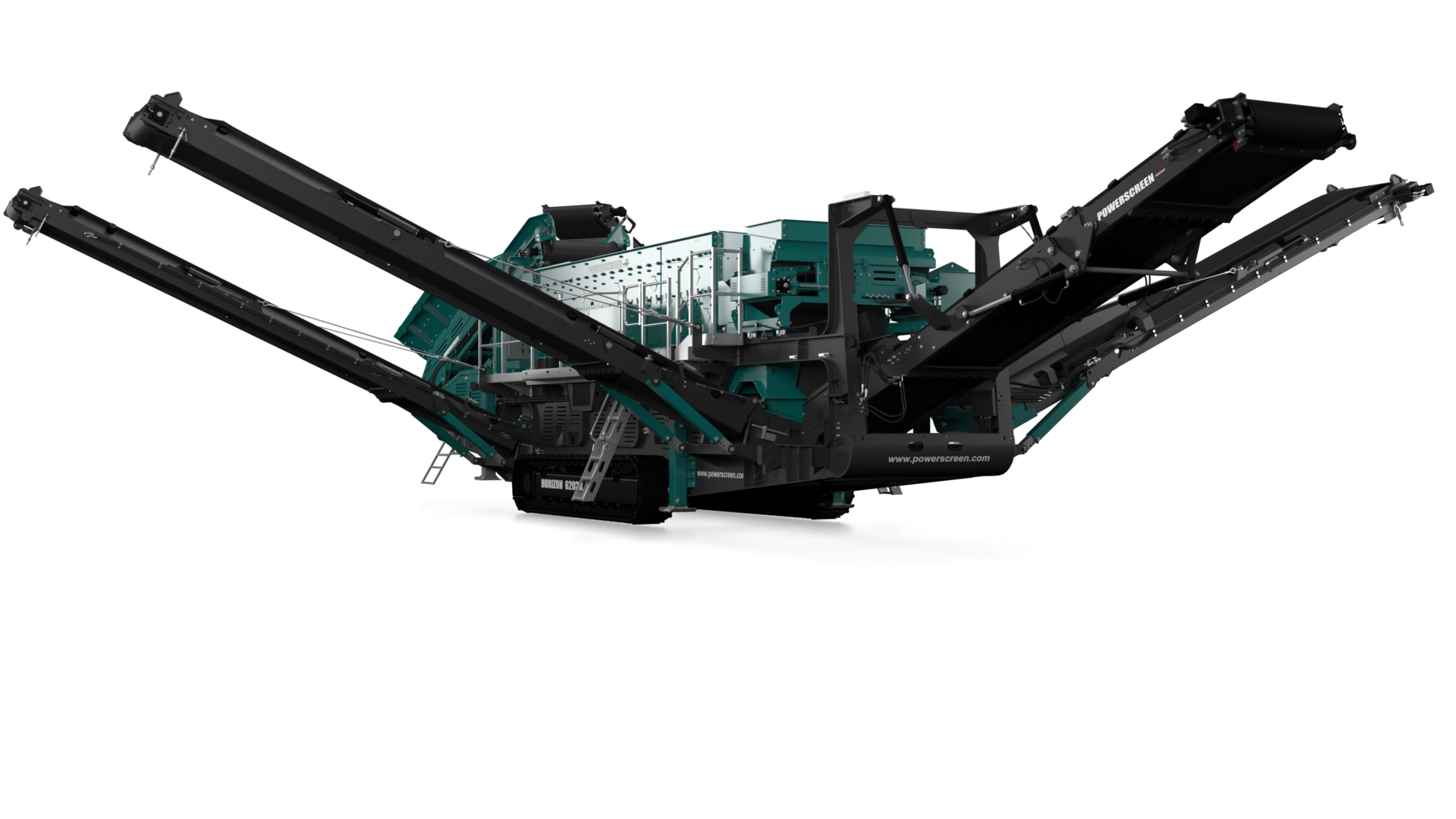

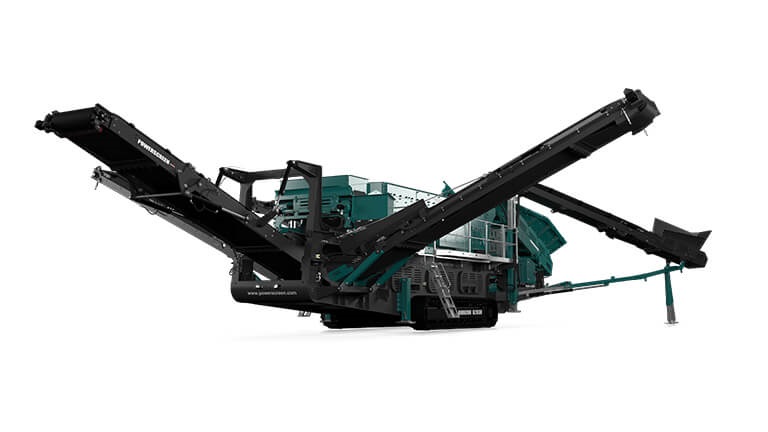

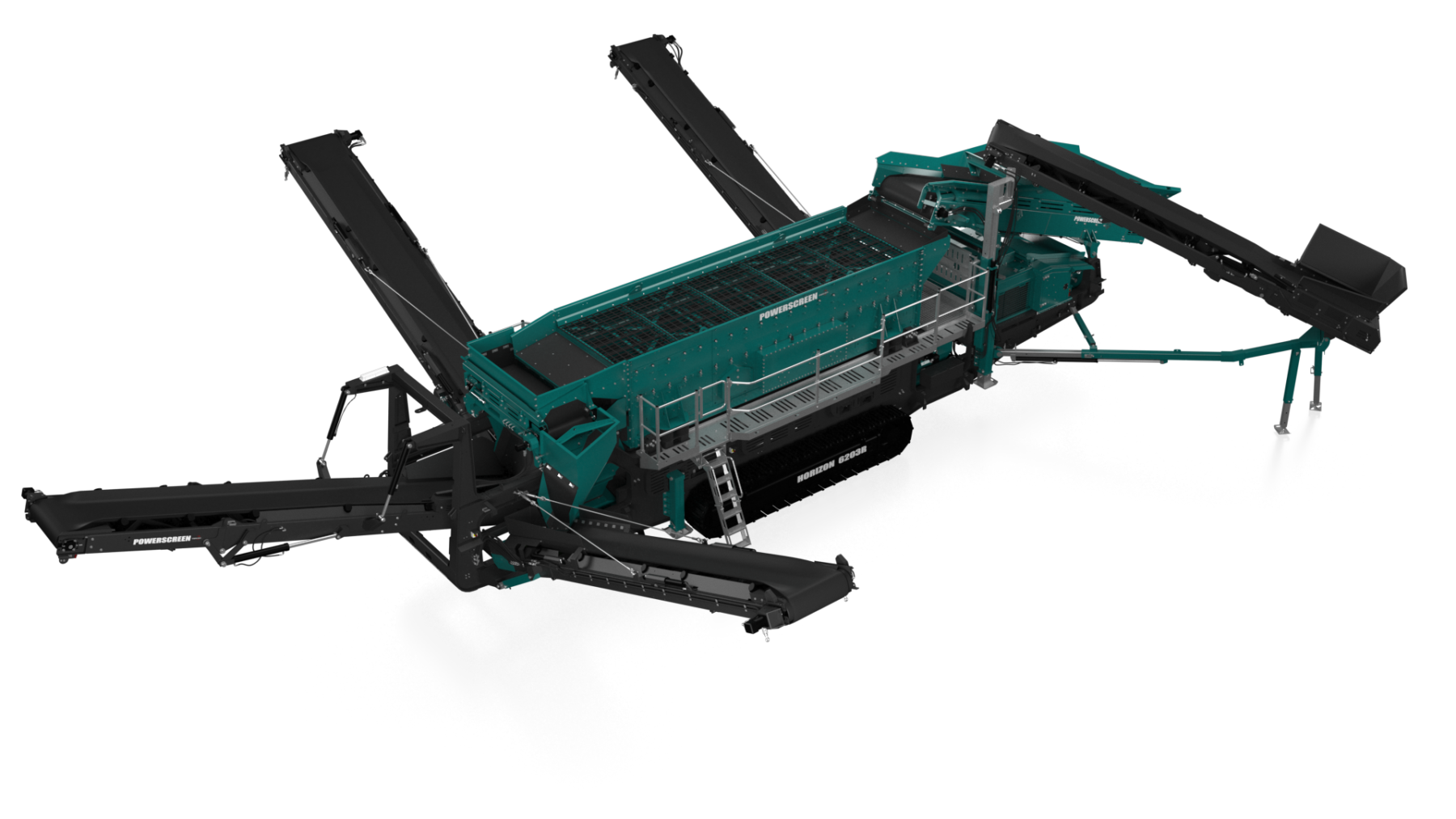

The Powerscreen Horizon 6203R Horizontal Screen is a high-capacity screening solution engineered for demanding aggregate, construction, and recycling applications. As part of the proven Powerscreen Horizon range, the Horizon 6203R combines advanced screening technology with exceptional material handling capabilities to deliver reliable performance across a wide variety of operating conditions. This screener is particularly effective when processing difficult materials, including iron ore, coal, asphalt, and recycled concrete.

Designed with a powerful horizontal screening configuration, the 6203R utilizes an aggressive screening action to improve efficiency and throughput. The unique combination of linear and circular amplitude provides superior performance when working with sticky materials and challenging feed sources. A heavy-duty feeder ensures consistent material flow, while the recirculating swivel conveyor enhances operational flexibility and material control.

The 6203R is ideal for fine sizing applications and can be integrated seamlessly with a crusher, jaw crusher, or complete processing spread. Built on a durable track platform, this horizontal screen offers excellent mobility and productivity across multiple job sites. Whether used to scalp material before crushing or to produce accurately sized products, the 6203R delivers dependable screening performance, efficient handling, and the versatility required for modern material processing operations.

Specification

Output Potential 800 tph (882 US tph)

Transport Dimensions Width: 10 ft 6 in Length: 62 ft 4 in Height: 11 ft 10 in

Working Dimensions Width: 53 ft 4 i Length: 69 ft 11 in Height: 15 ft 5 in

Weight 99,208 lbs
